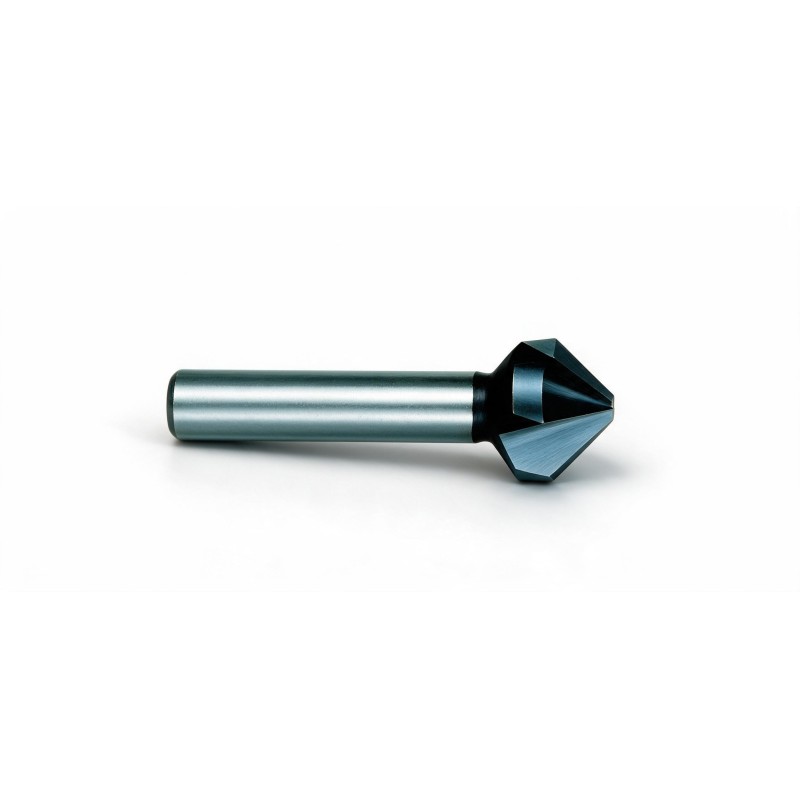

BMMTOOLS 3-flute HSS-Co5 TiAlN DIN 335 series 1822 reamers
zł58.49
Tax included
Lowest price in the last 30 days: zł58.49
Safe shopping (Przelewy24, PayU, PayPal)
Free delivery of products (for orders over PLN 300)
Safe returns (14 days to return purchased goods)
3-fluteHSS-Co5TiAlNDIN335, 90° angle
HSS-Co5 TiAlN 90° DIN 335 3-flute conical countersink BMMTOOLS
HSS-Co5 TiAlN-coated countersink for 90° conical recesses, deburring and finishing pre-drilled holes.
HSS-Co5 TiAlN 90° cobalt countersink
The BMMTOOLS 1822 series comprises 3-edged conical countersinks made from HSS-Co5 and coated with TiAlN. The tool has a cylindrical shank, a 90° cutting angle and complies with DIN 335.
The countersink is used after a pilot hole has been drilled. The sharp tip aligns the working part with the centre of the hole, whilst the three cutting edges create a conical surface for screw and bolt heads at a 90° angle, including those to DIN 7991. The design can also be used to remove burrs from the edge of the hole.
The combination of HSS-Co5 material and a TiAlN coating clearly distinguishes the 1822 series from HSS and HSS-Co5 variants. The manufacturer specifies a hardness of approximately 3000 HV and a low coefficient of friction for the TiAlN coating. [web:34]
Technical data
| Brand | BMMTOOLS |
|---|---|
| Series | 1822 |
| Type | Conical reamer |
| Material | HSS-Co5 |
| Coating | TiAlN |
| Number of cutting edges | 3 |
| Cutting edge angle | 90° |
| Standard | DIN 335 |
| Shank | Cylindrical |
Application
- For making recesses for 90° conical heads.
- Preparing sockets for DIN 7991 screws.
- Deburring the edges of pre-drilled holes.
- Finishing the surface at the entrance to the hole.
Tip: start work after drilling a pilot hole. Select the diameter to match the size of the socket for the head, maintain axial guidance and monitor the depth of the countersink.
