DIN 985 Class 5 self-locking nut, galvanised
zł0.03
Tax included
Lowest price in the last 30 days: zł0.03
Safe shopping (Przelewy24, PayU, PayPal)
Free delivery of products (for orders over PLN 300)
Safe returns (14 days to return purchased goods)
CLASS 5 GALVANISEDSTEEL DIN 985
DIN 985 Class 5 self-locking nut — galvanised
Hex nut with polyamide insert | Strength class 5 | Zinc coating | Sizes M3–M39
Product description
The self-locking nut compliant with DIN 985 is a fastener with a hexagonal profile and a polyamide insert. The insert increases resistance when the nut is unscrewed, thereby helping to prevent the connection from loosening spontaneously under the influence of vibrations, shocks and variable loads.
The product is made of steel in strength class 5 and has a zinc coating. The zinc coating provides basic protection against corrosion under standard storage, workshop and industrial conditions.
The nut is designed for bolts and threaded rods of the appropriate diameter and thread pitch. The hexagonal shape allows for easy fitting using flat-bladed, ring or socket spanners. Available sizes range from M3 to M39.
Key features
- DIN 985 — self-locking hexagon nut with non-metallic insert
- Polyamide insert — prevents the joint from loosening of its own accord
- Strength class 5 — for standard bolted joints
- Zinc coating — basic surface protection against corrosion
- Hexagonal profile — can be fitted using standard wrenches
- Size range M3–M39 — suitable for a wide range of technical and industrial applications
Applications
- Bolted joints exposed to vibrations and intermittent loads
- Assembly of machinery, equipment, components and steel structures
- Automotive, trailers, transport equipment and agricultural machinery
- Manufacturing, maintenance, servicing and workshop work
- Joining frames, brackets, clamps, guards and mounting components
DIN 985 dimension table
| Size | Thread pitch d1 [mm] |
Max. height h [mm] |
Min. height m [mm] |
Turnkey s [mm] |
Dimension e [mm] |
Approximate weight [kg / 1,000 pcs.] |
|---|---|---|---|---|---|---|
| M3 | 0.5 | 4.0 | 2.4 | 5.5 | 6.0 | 0.5 |
| M4 | 0.7 | 5.0 | 2.9 | 7.0 | 7.7 | 1.0 |
| M5 | 0.8 | 5.0 | 3.2 | 8.0 | 8.8 | 1.4 |
| M6 | 1.0 | 6.0 | 4.0 | 10.0 | 11.0 | 2.4 |
| M8 | 1.3 | 8.0 | 5.5 | 13.0 | 14.4 | 5.1 |
| M10 | 1.5 | 10.0 | 6.5 | 17.0 | 18.9 | 11.0 |
| M12 | 1.8 | 12.0 | 8.0 | 19.0 | 21.1 | 17.0 |
| M14 | 2.0 | 14.0 | 9.5 | 22.0 | 24.5 | 26.0 |
| M16 | 2.0 | 16.0 | 10.5 | 24.0 | 26.8 | 34.0 |
| M18 | 2.5 | 18.5 | 13.0 | 27.0 | 29.6 | 45.0 |
| M20 | 2.5 | 20.0 | 14.0 | 30.0 | 33.0 | 65.0 |
| M22 | 2.5 | 22.0 | 15.0 | 32.0 | 35.0 | 75.0 |
| M24 | 3.0 | 24.0 | 15.0 | 36.0 | 39.6 | 100.0 |
| M27 | 3.0 | 27.0 | 17.0 | 41.0 | 45.2 | 160.0 |
| M30 | 3.5 | 30.0 | 19.0 | 46.0 | 50.9 | 210.0 |
| M33 | 3.5 | 33.0 | 22.0 | 50.0 | 55.4 | 320.0 |
| M36 | 4.0 | 36.0 | 25.0 | 55.0 | 60.8 | 420.0 |
| M39 | 4.0 | 39.0 | 27.0 | 60.0 | 66.4 | 520.0 |

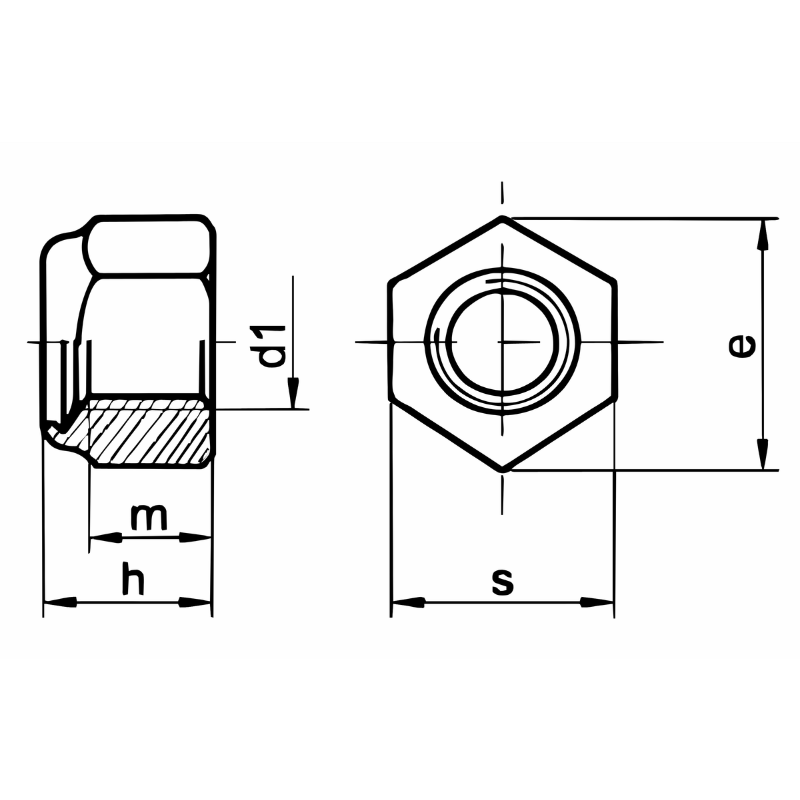

All dimensions are given in millimetres, unless otherwise stated. d1 denotes the thread pitch, h the total height of the nut, m the minimum height of the metal part, s the wrench size, and e the distance between opposite corners. The weight is approximate and applies to 1,000 pieces.
Selection and fitting
- Select a nut to match the diameter and thread pitch of the bolt or threaded rod.
- Use the nut in assemblies designed to withstand the loads and meet the requirements of the specific structure.
- The polyamide insert should be located on the side of the protruding end of the bolt after the joint has been tightened.
- After repeated loosening and re-tightening, the self-locking action of the insert may be reduced.
- For safety-critical connections, a new nut must be used in accordance with the structural requirements.
B2B wholesale purchases and enquiries about availability
Do you need larger quantities, a specific size or a bespoke quote? Email us at biur@ispartner.pl. We will confirm availability and prepare a quote for your company.
Do you need larger quantities, a specific size or a bespoke quote? Email us at biur@ispartner.pl. We will confirm availability and prepare a quote for your company.
Important information
Before purchasing, please check that the thread diameter and pitch are compatible with the bolt or threaded rod you are using. In environments with high humidity, where there is contact with chemicals, or where there is constant exposure to outdoor conditions, it is worth considering fasteners with higher corrosion resistance.
