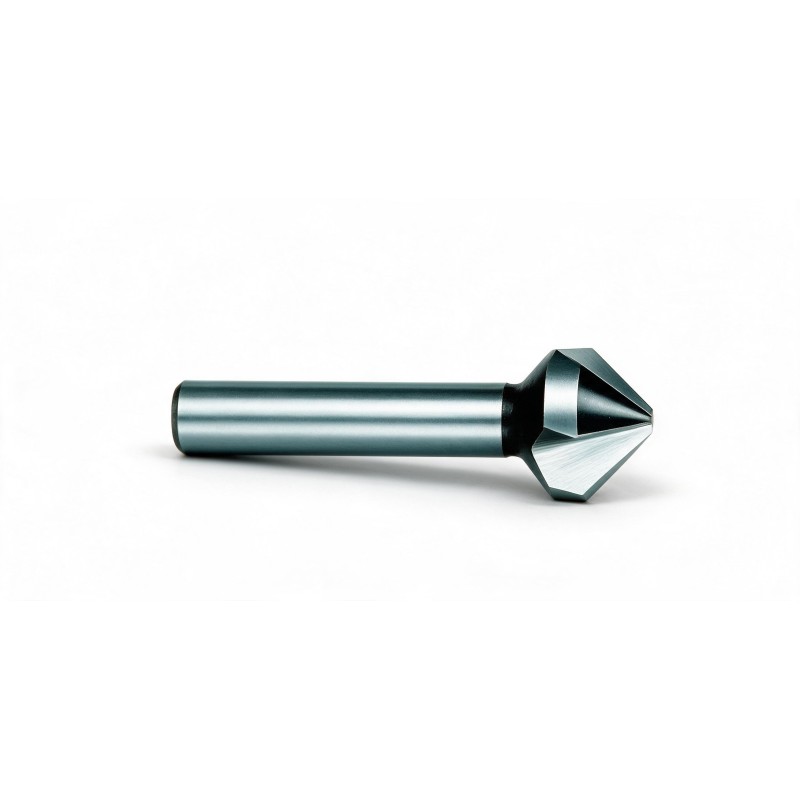

BMMTOOLS HSS DIN 335 3-flute countersinks, 1801 series
zł33.19
Tax included
Lowest price in the last 30 days: zł33.19
Safe shopping (Przelewy24, PayU, PayPal)
Free delivery of products (for orders over PLN 300)
Safe returns (14 days to return purchased goods)
3-flute HSSDIN 335, 90° angle
HSS 90° 3-edged conical countersink DIN 335 BMMTOOLS
HSS countersink with cylindrical shank for creating recesses for 90° conical heads and for deburring pre-drilled holes.
HSS conical countersink for hole finishing
The BMMTOOLS countersink from the 1801 series has three cutting edges, a cylindrical shank and a 90° cutting angle. The design, in accordance with DIN 335, is used to create a conical countersink in a hole previously prepared with a drill bit.
The 90° countersink allows the preparation of a recess for countersunk-head screws, including DIN 7991 screws. The sharp tip of the tool guides the countersink along the centre line of the existing hole, whilst the three cutting edges machine the entrance and remove burrs.
The HSS variant is the high-speed steel version. When selecting a countersink, compare its diameter with the target socket diameter and check that the head of the screw being used has a 90° angle.
Technical data
| Brand | BMMTOOLS |
|---|---|
| Series | 1801 |
| Type | Conical reamer |
| Material | HSS |
| Number of cutting edges | 3 |
| Cutting edge angle | 90° |
| Standard | DIN 335 |
| Shank | Cylindrical |
Application
- For making countersinks for 90° conical heads.
- Preparing holes for DIN 7991 screws.
- Deburring edges after drilling.
- Finishing the hole entrance in assembly and workshop components.
Tip: use the countersink after drilling the pilot hole. Guide it coaxially with the hole and monitor the depth of the countersink to ensure the screw head sits flush.
